1-50T With Electrical Railway Transfre Carts Use Remote Control
| Place of Origin | Henan,China |
|---|---|
| Hàng hiệu | BEFANBY |
| Chứng nhận | CE,SGS,ISO9001 |
| Model Number | KPT |
| Minimum Order Quantity | 1 set/sets |
| Giá bán | Có thể đàm phán |
| Packaging Details | The movable lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Color | Customized | Warranty | 24 months |
|---|---|---|---|
| Load capacity | Customized | Power supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | aerial working,factory,workshop,construction site |
| Materials | Steel |
Mô tả sản phẩm

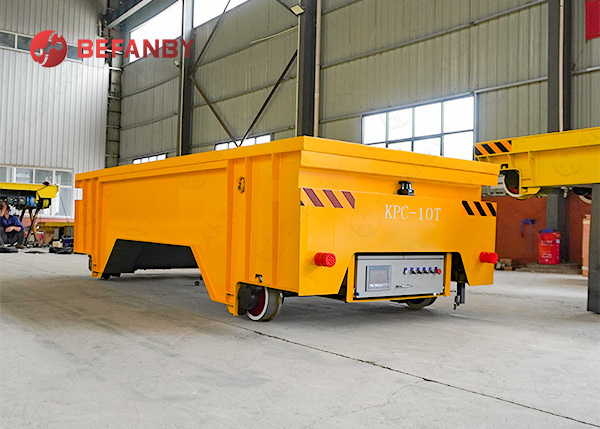

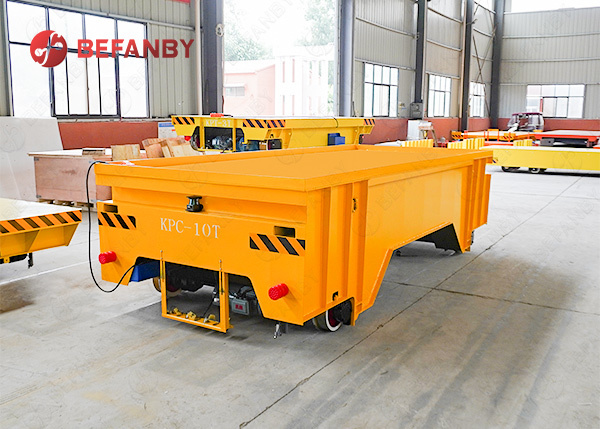

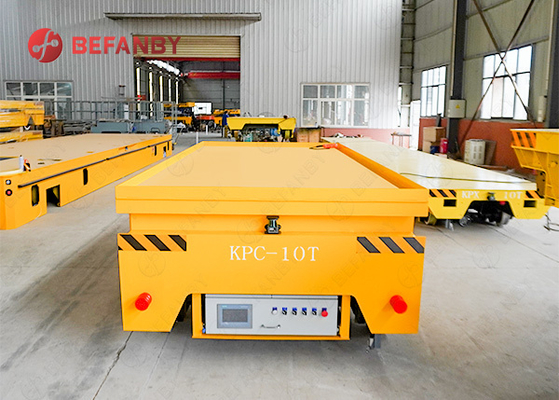

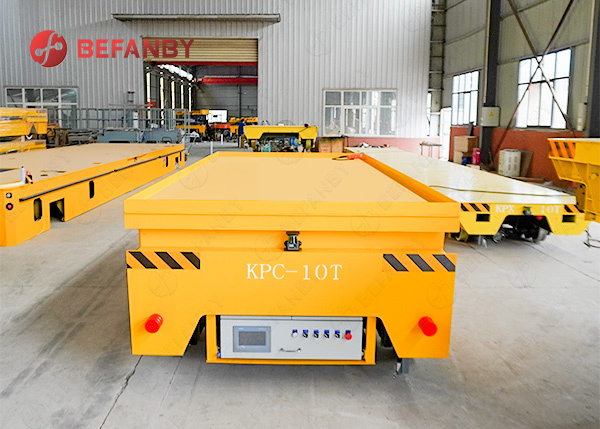

1-50T With Electrical Railway Transfer Carts Use Remote Control
Product Description
An electric rail transfer cart is a type of material transport equipment powered by electricity (customizable) and running along fixed tracks. It is widely used in various industrial fields, including factories, warehouses, logistics, and large machinery. The following is a comprehensive introduction to electric rail transporters:
Product Parameter
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance | ||
| Busbar Powered Handling Cart | KPC | Busbar | Working shop | ||
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop | |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment | |
| Trackless Handling Machine | BWP | Battery | Working path |
Products Details
Basic Structural Components
1.Frame: Constructed of welded high-strength steel (a steel section splicing structure), it offers excellent load-bearing capacity and deformation resistance.
2.Electrical System: Utilizes an AC motor, intelligent electronic control box, and emergency stop button to drive and control the entire vehicle.
3.Drive System: The electric motor drives the wheels through a speed reducer, ensuring smooth and reliable operation.
4.Wheelset: Typically high-strength cast steel wheels adaptable to tracks of varying gauges.
5.Power System: Depending on the power supply method, it can be divided into battery-powered, busbar-powered, cable drum-powered, and low-voltage rail-powered.
Application
The rail-type material handling vehicle is an efficient handling equipment that relies on rail operation and is mostly used for workshop material transfer. It is widely used in metallurgy, factories, molds, high-temperature furnaces and other industries. The vehicle has a simple structural design and stable operation, which is particularly suitable for frequent material transportation tasks within a fixed route. Driving along the track through (double) motors can greatly reduce the intensity of manual handling and improve work efficiency.
Company Profile
Product Features
Main Types
1. Battery-Powered Transfer Cart: Powered by rechargeable batteries, it's easy to use. It can be charged and discharged over 1,000 times. It offers flexible operation and is suitable for locations without fixed rail power.
2. Low-Voltage Rail-Powered Transfer Cart:: The rails are live, and the wheels draw power from contact with the rails. This makes it suitable for longer distances and applications with high safety requirements.
3. Cable-Reel-Powered Transfer Cart:: Powered by automatically retracting and releasing cables, it's suitable for medium-distance operations and convenient wiring.
4. Busbar-Powered Transfer Cart:: Busbars run along the rails, and the vehicle draws power for continuous operation, making it suitable for all-weather operations.
Shipping
Related Products
FAQ
Q: Whether you product can be customized?
A: Sure. All our products are customized as per customers’ requirement, because different products are with different requirements of specification. The proper solution will be provided according to your true demand.
Q: What is the size and load of this Rail Transfer Car?
A:The size and load of our this rail transfer car is customized design according to your requirement.
Q: How do transfer cart been shipped?
A: We export the transfer cart by sea or train with full container, LCL or in Bulk.
Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 30 days.About the delivery term, we accept ,FOB, CIF. About the payment, we accept T/T or L/C, etc.
Q: Can we choose the power supply for industry transport cart?
A: Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.
