20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart

  • 20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart
  • 20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart
  • 20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart
  • 20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart
  • 20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart
Place of Origin Henan,China
Hàng hiệu BEFANBY
Chứng nhận CE,SGS,ISO9001
Model Number lift platform
Minimum Order Quantity 1 set/sets
Giá bán Có thể đàm phán
Packaging Details The movable lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 20-30 days as usual delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 1500 set/sets, per year

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Color Customized Warranty 24 months
Load capacity Customized Power supply Battery Operated
Port Qingdao/Tianjin/Shanghai Application aerial working,factory,workshop,construction site
Materials Steel
Để lại lời nhắn
Mô tả sản phẩm

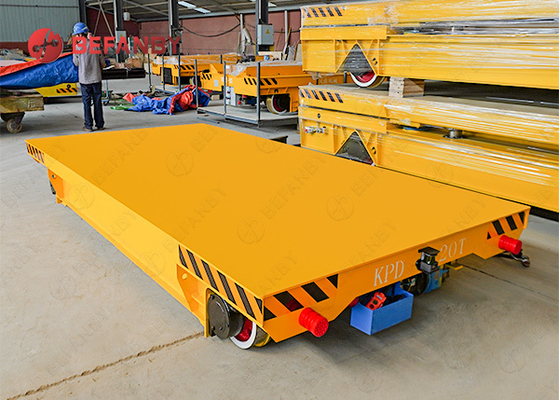

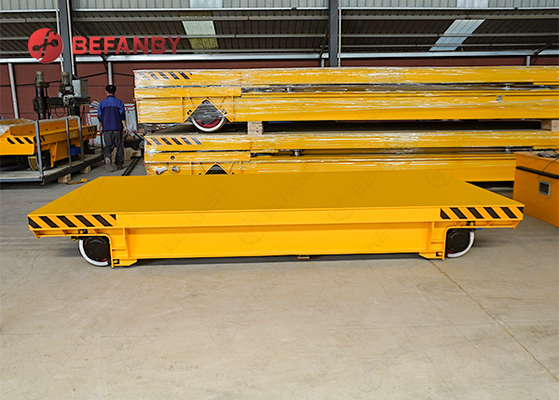

20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart

Product Description

The low-voltage rail transfer cart is a type of rail transport equipment that draws power from a safe 36V or 48V rail voltage, ensuring stable operation. Operating on routes with low-voltage rails, the vehicle is suitable for various work environments, such as workshops, production lines, and factory storage systems, ensuring the smooth transportation of large tonnages of materials. Its sturdy structure and strong load-bearing capacity ensure the equipment is noiseless and pollution-free during operation, making it particularly suitable for workplaces with frequent and prolonged use.


20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart 0

Product Details

20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart 1

The transfer cart consists primarily of core components such as a frame, drive system, control system, and low-voltage power supply. It supports long-distance operations and transports across a variety of complex, intersecting routes. It also offers excellent safety features and can operate in high-temperature environments. Its high-performance system ensures long-term operation.

Product Parameter

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8

Product Feature

20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart 2

Product Advantages
1. Safe Power Supply: Utilizes a 36V low-voltage rail power supply, ensuring safe operation for both personnel and equipment.
2. Stable and Efficient: Excellent continuous operation performance, suitable for medium and long-distance transport needs.
3. Easy Maintenance: Simple structure, easy component replacement and maintenance, reducing ongoing O&M costs.
4. Energy-Saving and Environmentally Friendly: No exhaust emissions are generated during operation, and no battery charging or replacement is required, resulting in energy-saving and high efficiency.
5. Intelligent Control: Can be integrated with an automated control system, with optional remote control or joystick operation for improved transport efficiency.

Our Company

20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart 3

20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart 4

20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart 5

20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart 6




Support Customized

20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart 7

20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart 8

We offer comprehensive custom services tailored to your specific application and operational needs. We can customize the following:
* Table dimensions (extended width and length)
* Load capacity (1-100 tons)
* Additions of special features such as coil V-racks, hydraulic or scissor lifts, and tilting systems
* Custom exterior colors and logos
* Structural reinforcement and material selection for special environments (high temperature, explosion-proof, and dust-proof)

Related Products

20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart 9


Our After Service
  • Our commitment:
  • The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
  • 16 hours engineering service and 24 hours internet service for our customers
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.


20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart 10
